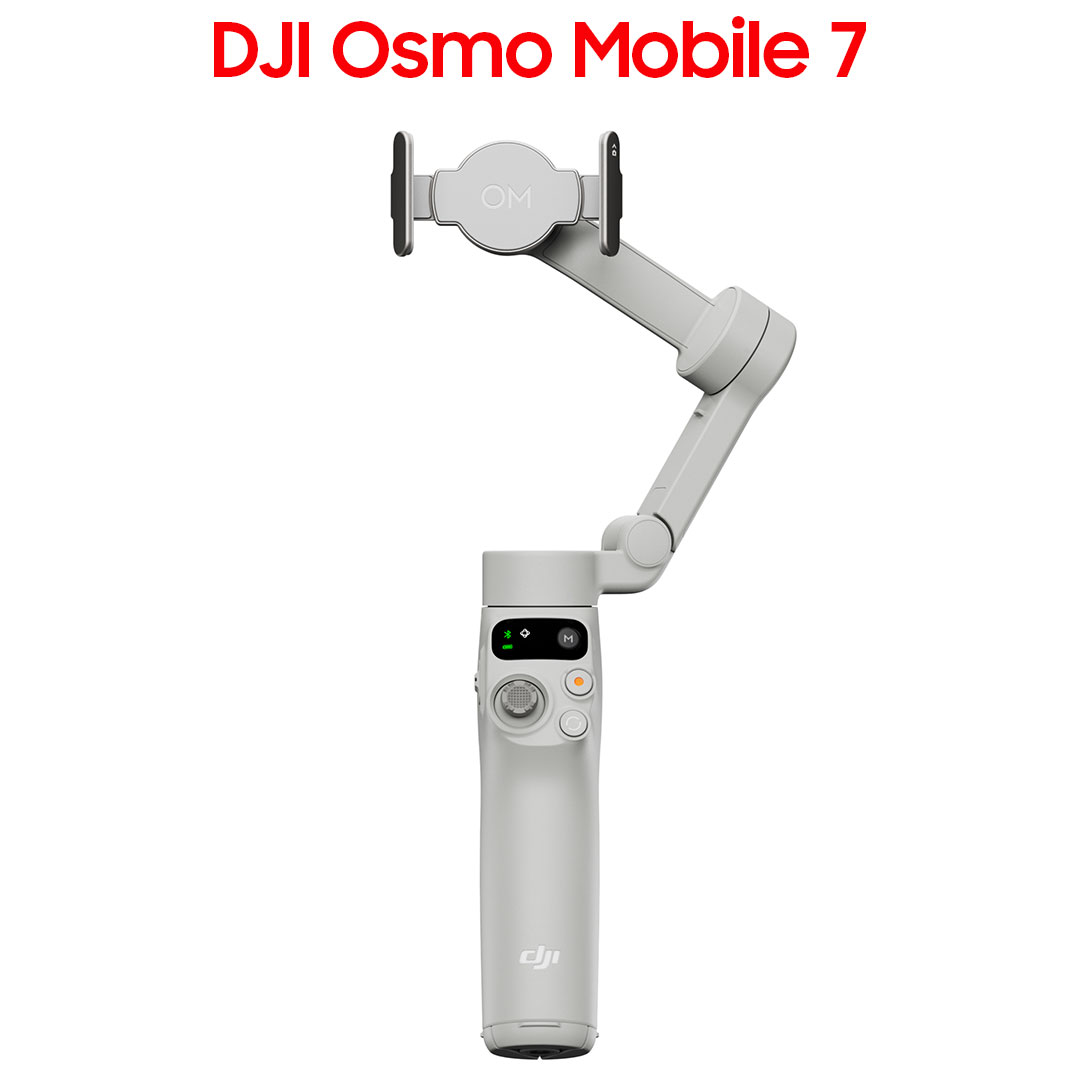

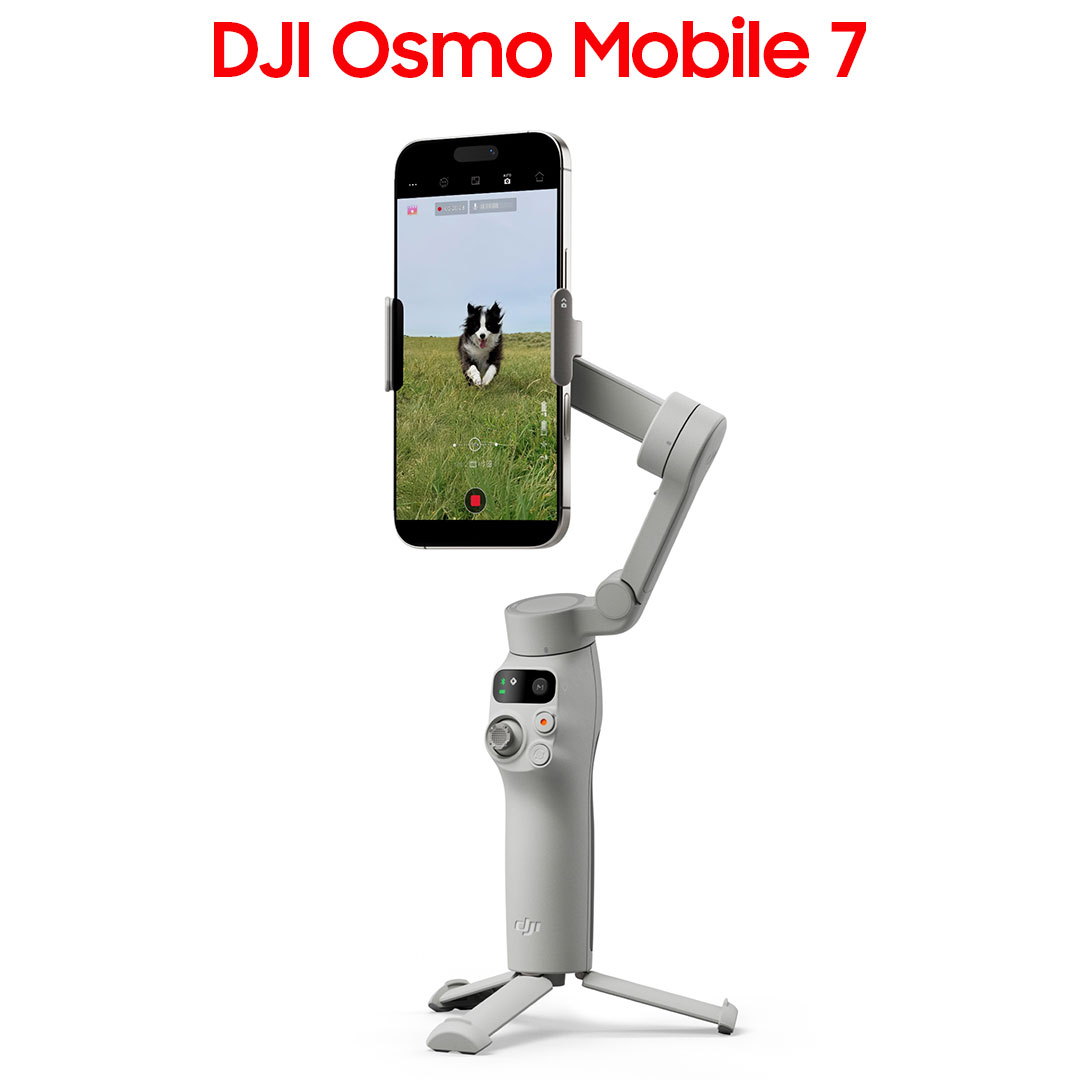

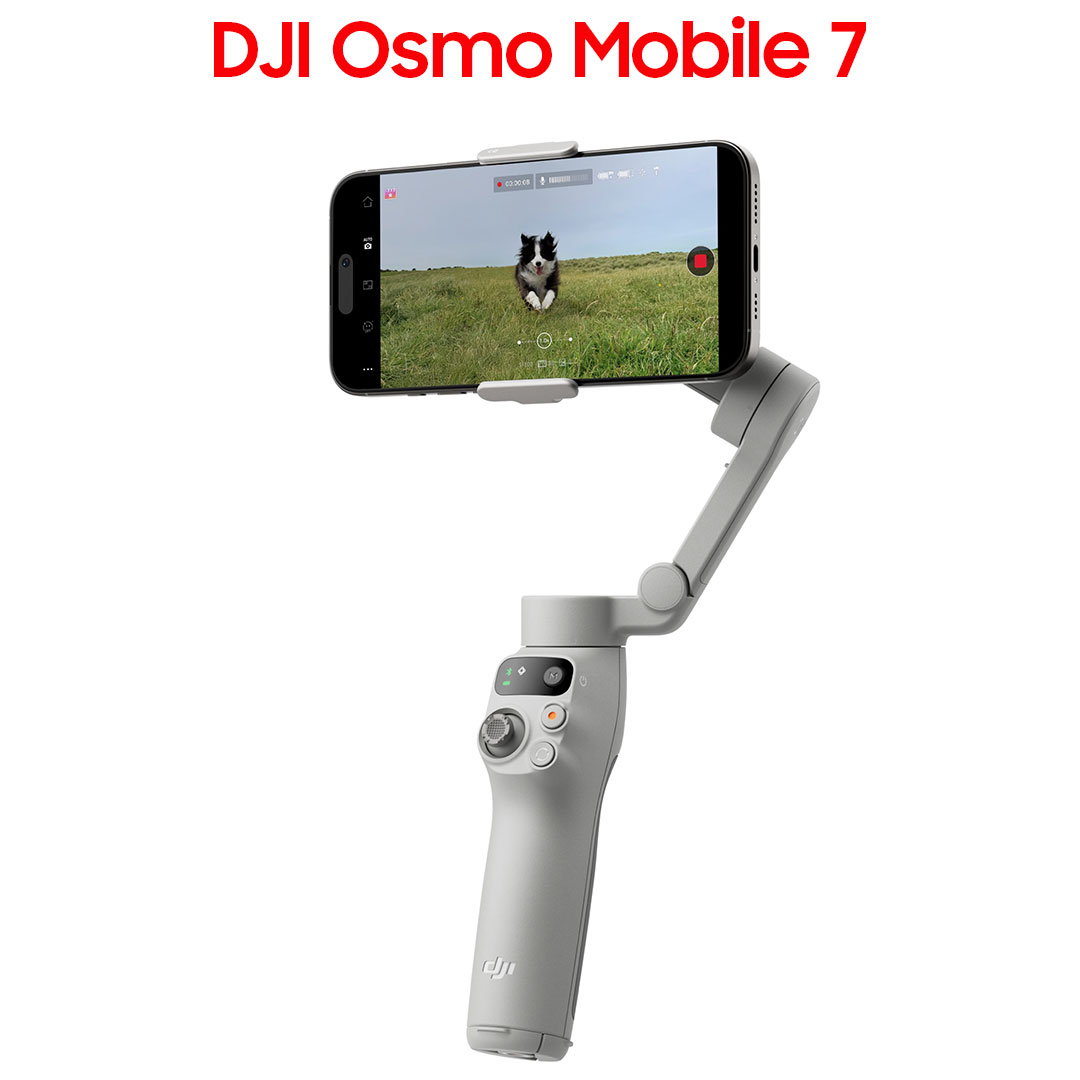

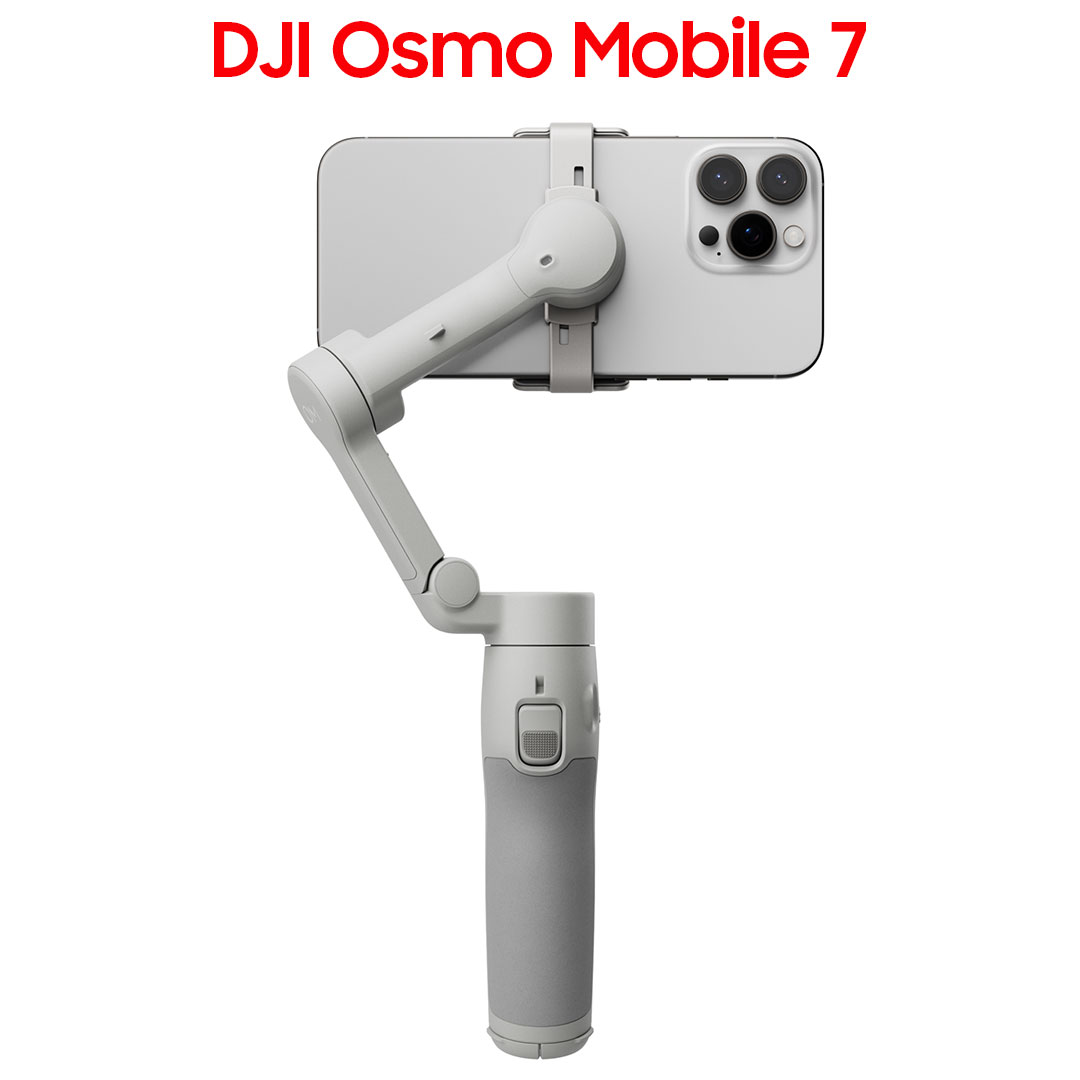

DJI Osmo Mobile 7 | Robust 3-Axis Gimbal Stabilization
109$
DJI Osmo Mobile 7 | Robust 3-Axis Gimbal Stabilization
Easy Tutorials & One-Tap Editing.
ActiveTrack 7.0
Ultra-light With Comfortable Grip
Built-in Tripod & Integrated Foldable Desgin.
10-Hour Battery Life & Phone Charging.
Color: White
Get in touch with us now.
Need more information about our product, feel free to contact us. We’ll get back to you as soon as possible!
Extra Information
General
Osmo Mobile 7
Unfolded: 278×107×93 mm (L×W×H)
Folded: 179×95×39 mm (L×W×H)
Weight
Osmo Mobile 7
Gimbal + Built-in Tripod + Magnetic Phone Clamp: Approx. 300 g
Data was collected in a controlled environment. Actual experience may var
Extension Rod
Osmo Mobile 7
No Built-in Extension Rod
Compatible Phone Weight
170-300 g
Compatible Phone Thickness
6.9-10 mm
Compatible Phone Width
67-84 mm
Bottom Port
1/4″ Screw Hole
Battery
Type
Li-Po 1S
Capacity
3350 mAh
Energy
12.06 Wh
Charging Temperature
5° to 40° C (41° to 104° F)
Operating Temperature
0° to 40° C (32° to 104° F)
Operating Time
Osmo Mobile 7
Approx. 10 hours
(Measured with the gimbal balanced in a level and stationary state without additional accessories)
With the Multifunctional Module’s intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours.Using the gimbal to charge your smartphone will shorten the gimbal’s operating time.
Charging Time
Approx. 2.5 hours
(Measured with a 10W USB-C charger)
Gimbal Charging Port
USB-C
Phone Charging
Supported
Gimbal
Controllable Range
Pan: -99° to 210°
Roll: -67° to 245°
Tilt: -20° to 40°
Mechanical Range
Pan: -109° to 222°
Roll: -77° to 255°
Tilt: -224° to 100°
Max Control Speed
120°/s
Wireless Mode
Model
Bluetooth 5.3
Software
App
DJI Mimo
Tripod
Dimensions
Built-in Tripod
Length: 67 mm
Multifunctional Module
Compatibility
Osmo Mobile 7
Supported (optional)
GFSK
2 Mbps
GFSK Transmitter Power (EIRP)
< 16 dBm
GFSK Operating Frequency
2.4000-2.4835 GHz
Bluetooth Protocol
Bluetooth 5.3
Bluetooth Transmitter Power (EIRP)
< 16 dBm
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Fill Light Illuminance
40 lux
This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.
